Where is the status bar in AutoCAD?
Matthew Cannon updates

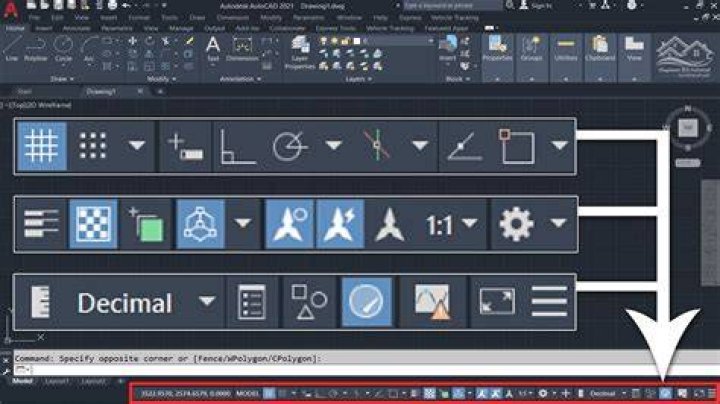

The Status Bar, at the bottom right of the AutoCAD screen, can be customized show or hide buttons as desired.
.
Then, where is the status bar located in AutoCAD?
Understanding the Status Bar Autocad. The status bar is located below the command line (see Figure 1.21), and docked in the lower-right corner of the Application window.
Furthermore, what is the status bar in AutoCAD? The status bar displays the cursor location, drawing tools, and tools that affect your drawing environment. The status bar provides quick access to some of the most commonly used drawing tools. You can toggle settings such as grid, snap, polar tracking, and object snap.
In this way, where is the status bar in AutoCAD 2019?
Click the Drawing Status Bar Menu (the down arrow at the far right of the upper status bar). Click the Application Status Bar Menu (the down arrow at the far right of the lower status bar).
How do I display my status bar?
Controlling Display of the Status Bar
- Choose Options from the Tools menu. Word displays the Options dialog box.
- Make sure the View tab is selected. (See Figure 1.)
- Click on the Status Bar check box. If there is a check mark in the check box, then the status bar will be displayed; no check mark means it will not.
- Click on OK.
Related Question Answers
What is GUI in AutoCAD?
Graphical User Interface (GUI) of AutoCAD- (hindi) Online Training Platform.What is ribbon in AutoCAD?
The ribbon is a palette that displays task-based buttons and controls that are relevant to the current workspace. It eliminates the need to display multiple toolbars, reducing clutter in the application and maximizing the drawing area available. Audience: Users new to the AutoCAD 2009 user interface (UI)How do I show the menu bar in Autocad?
To Display the Menu Bar- At the top-left of the application window, on the right end of the Quick Access toolbar, click the drop-down menu Show Menu Bar.
- At the Command prompt, enter MENUBAR. Enter 1 to display the menu bar.
How do I show the ribbon in Autocad?
Display the RibbonClick Tools menu Palettes Ribbon or enter RIBBON at the Command prompt. Note: The ribbon is displayed with the ribbon tabs assigned to the current workspace.How do I get the command bar in Autocad?
Open or Close the Command Window- Click View tab Palettes panel Command Line. Find.
- Press Ctrl+9.
- At the Command prompt, enter COMMANDLINE or COMMANDLINEHIDE.
How do I expand the menu bar in AutoCAD?
To Display the Menu Bar- At the top-left of the application window, on the right end of the Quick Access toolbar, click the drop-down menu Show Menu Bar.
- At the Command prompt, enter MENUBAR. Enter 1 to display the menu bar.
Where is drafting settings in AutoCAD?
To Modify Drafting Settings- On the Status Bar, right-click any of the following and choose Settings. Snap Mode Find. Grid Display Find. Polar Tracking Find. Object Snap Find. 3D Object Snap Find. Object Snap Tracking Find. Dynamic Input Find. Quick Properties Find. Selection Cycling Find.
- In the Drafting Settings dialog box, modify settings as needed.
What type of object snaps Do points have?
The Object Snaps (Osnaps for short) are drawing aids which are used in conjunction with other commands to help you draw accurately. Osnaps allow you to snap onto a specific object location when you are picking a point. For example, using Osnaps you can accurately pick the end point of a line or the center of a circle.How do I get my toolbars back in AutoCAD?
To Display a Toolbar- To display the menu, click Quick Access Toolbar drop-down > Show Menu Bar.
- To display a toolbar, click Tools menu > Toolbars and select the required toolbar.
How do I get the menu bar in AutoCAD 2018?
To Display the Menu Bar- At the top-left of the application window, on the right end of the Quick Access toolbar, click the drop-down menu Show Menu Bar.
- At the Command prompt, enter MENUBAR. Enter 1 to display the menu bar.
How do I add an object snap toolbar in AutoCAD 2018?
To Display the Object Snap Menu- Enter any command that prompts you to specify a point. For example, enter line.
- At the prompt for a point, hold down Shift and right-click in the drawing area.
What does the status bar look like?
Status Bar. A status bar is a small area at the bottom of a window. It is used by some applications to display helpful information for the user. For example, an open folder window on the desktop may display the number of items in the folder and how many items are selected.What does the status bar display?
A status bar is a graphical control element which poses an information area typically found at the window's bottom. It can be divided into sections to group information. Its job is primarily to display information about the current state of its window, although some status bars have extra functionality.What is menu bar and status bar?
A menu bar is a thin, horizontal bar containing the labels of drop-down menus in an operating system's GUI. It provides the user with a standard place in a window to find the majority of a program's essential functions. These functions include opening and closing files, editing text, and quitting the program.Where is the status bar on my phone?
The status bar at the top of the home screen provides phone and service status information on the right side and notification alerts on the left. To view the notification panel or access the quick settings menu, pull down the status bar from the top of the screen.What is the difference between taskbar and status bar?
The most basic difference is that the taskbar is displayed on the Microsoft Windows desktop and is the only taskbar in the operating system. Toolbars vary from program to program and are displayed only when their respective programs are opened.What is meant by menu bar?
A menu bar is a graphical control element which contains drop-down menus. The menu bar's purpose is to supply a common housing for window- or application-specific menus which provide access to such functions as opening files, interacting with an application, or displaying help documentation or manuals.How do I show the vertical page on my status bar?
Right-click the status bar. 2. Check “Vertical Page Position”. Note that depending on your computer's speed, when scrolling through your documents it may take Word a half second or so to update the position.What are the four different views of the status bar?
Figure 4.7 The Document Views group contains the same five view icons as the ones in the status bar.- Print Layout view. Standard documents, such as letters, memos, and reports, are often written and edited in Print Layout view.
- Full Screen Reading view.
- Web Layout view.
- Outline view.
- Draft view.
