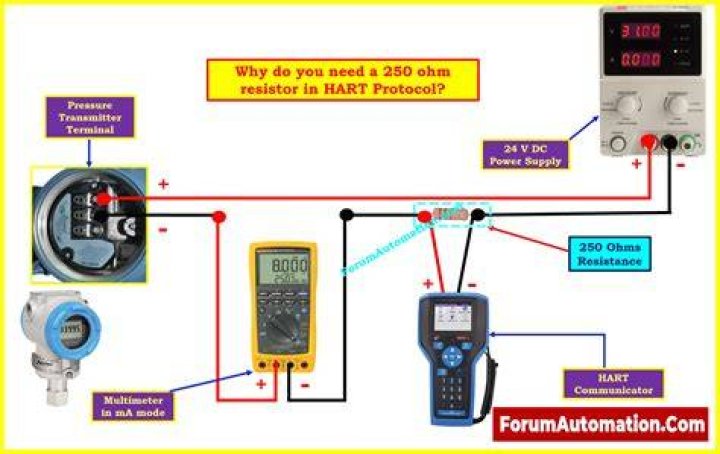

Why do you need a 250 ohms resistor in HART protocol?
Christopher Anderson .
People also ask, what color is a 250 ohm resistor?
For example, a resistor with a color band pattern of red, green, yellow, gold yields the first digit as 2, the second digit as 5, and a multiplier of 10,000. This produces a resistance value of 25 * 10,000 = 250 kΩ with a ± 5% tolerance.
Subsequently, question is, what is HART communicator used for? A HART communicator is a portable device, based on HART communication protocol. A field communicator supports both HART and Foundation Fieldbus devices. HART communicator devices are used to check variables online and for calibration purposes.
Besides, how is Ohm's law useful as a technician?
Probably the most important mathematical relationship between voltage, current and resistance in electricity is something called “Ohm's Law”. This formula is used to calculate electrical values so that we can design circuits and use electricity in a useful manner. Ohm's Law is shown below.
What is the formula to calculate resistance?
If you know the total current and the voltage across the whole circuit, you can find the total resistance using Ohm's Law: R = V / I. For example, a parallel circuit has a voltage of 9 volts and total current of 3 amps. The total resistance RT = 9 volts / 3 amps = 3 Ω.
Related Question Answers
What color is a 150 ohm resistor?
150R / 150 ohm Resistor Colour Code
| Value | 150 Ω |
|---|---|
| Type | 4 Band Colour Code System |
| Colour Code | Brown, Green, Brown, Gold |
| Multiplier | Brown, 10 |
| Tolerance | Gold Band ±5% |
What color is a 47k resistor?
47k / 47k ohm Resistor Colour Code
| Value | 47 kΩ / 47000 Ω |
|---|---|
| Type | 4 Band Colour Code System |
| Colour Code | Yellow, Violet, Orange, Gold |
| Multiplier | Orange, 1000 |
| Tolerance | Gold Band ±5% |
What color is a 6.8 K resistor?
6k8 / 6.8k ohm Resistor Colour Code
| Value | 6.8 kΩ / 6800 Ω |
|---|---|
| Type | 4 Band Colour Code |
| Colour Code | Blue, Grey, Red, Gold |
| Multiplier | Red, 100 |
| Tolerance | Gold Band ±5% |
What color is a 1 ohm resistor?
So here we go: 1 is brown, zero is black and -1 is gold. So there you go: Brown, Black, Gold = 1.0 ohm.What resistor do I need for LED?
Basics: Picking Resistors for LEDs
| Power Supply Voltage | LED Color | Resistor (rounded) |
|---|---|---|
| 5 V | Red, Yellow, or Yellow-Green | 150 Ω |
| 5 V | Red, Yellow, or Yellow-Green | 56 Ω |
| 9 V | Red, Yellow, or Yellow-Green | 75 Ω |
| 9 V | Blue, Green, White, or UV | 100 Ω |
How do I know if I have a 1k ohm resistor?
Coding a 1k Ohm Resistor- Step 1: Identify the first and second significant figures. For the number 1,000, the first significant figure is ''1'', and ''0'' is the second significant figure.
- Step 2: Count the number of zeros after the first two significant figures.
- Step 3: Code the numbers with colors.
What color is a 470 ohm resistor?
470R / 470 ohm Resistor Colour Code
| Value | 470 Ω |
|---|---|
| Type | 4 Band Colour Code System |
| Colour Code | Yellow, Violet, Brown, Gold |
| Multiplier | Brown, 10 |
| Tolerance | Gold Band ±5% |
What color is a 2.2 K ohm resistor?
2k2 / 2.2k ohm Resistor Colour Code
| Value | 2.2 kΩ / 2200 Ω |
|---|---|
| Type | 4 Band Colour Code |
| Colour Code | Red, Red, Red, Gold |
| Multiplier | Red, 100 |
| Tolerance | Gold Band ±5% |
What are the 3 forms of Ohm's law?
Ohm's law- Alternating current.
- Capacitance.
- Direct current.
- Electric current.
- Electric potential.
- Electromotive force.
- Impedance.
- Inductance.
What is meant by 1 ampere?
An ampere is a unit of measure of the rate of electron flow or current in an electrical conductor. One ampere of current represents one coulomb of electrical charge (6.24 x 1018 charge carriers) moving past a specific point in one second. The ampere is named after Andre Marie Ampere, French physicist (1775-1836).What is Ohm's law Short answer?
Ohm's law states that the voltage or potential difference between two points is directly proportional to the current or electricity passing through the resistance, and inversely proportional to the resistance of the circuit. The formula for Ohm's law is V=IR.What are ohms used for?
The ohm is the standard unit of electrical resistance in the International System of Units ( SI ). Ohms are also used, when multiplied by imaginary numbers, to denote reactance in alternating-current ( AC ) and radio-frequency ( RF ) applications.What is Watt's law?
Watt's Law states that: Power (in Watts) = Voltage (in Volts) x Current (in Amps) P = V I Combining with Ohm's law we get two other useful forms: P = V*V / R and P = I*I*R Power is a measurement of the amount of work that can be done with the circuit, such as turning a motor or lighiting a light bulb.How do you calculate Ohm's law?
Ohm's law formulaThe resistor's current I in amps (A) is equal to the resistor's voltage V in volts (V) divided by the resistance R in ohms (Ω): V is the voltage drop of the resistor, measured in Volts (V).Why is Ohm's law important?
Ohm's law is vitally important to describing electric circuits because it relates the voltage to the current, with the resistance value moderating the relationship between the two.Who invented Ohm's law?
Georg Simon Ohm
