What size breaker do I need for a 220 pump?

For a 1/2 HP submersible pump, a 15 amp 2 pole breaker would be normal. You can run 12 AWG, but unless the run is very long, 14 AWG is sufficient. Bigger wire would let you switch to a bigger pump later if you wanted. Your pump must be smaller than 1/2 HP for a 4.3 amps @230 volt nameplate.

Hereof, what size breaker do I need for pool pump?

A typical above ground pool pump will require a 20-amp breaker and use #12 gauge wire to deliver the electricity.

One may also ask, what size breaker do I need for a 1/2 HP sump pump? For one motor like a sump pump, it is 125% and then next standard breaker. 1/2 hp= 8 amps *1.25= 10 amps, minimum circuit would be 14 and fused at 15.

Beside above, can 10 gauge wire handle 35 amps?

your best bet would be to look in the NEC codebook or at the manufacturers spec sheet for the wire. To put it simply though, maybe, depending on insulation type and/or designed operational temperature 10 gauge can handle anywhere from 30 - 40 amperes if it is copper and 25 - 35 amperes if it is aluminum.

What size breaker do I need for a 15 amp compressor?

Use a 12 wire and a 20A breaker. 15A ends are allowed on 20A circuits.

Should pool pump be on GFCI?

Pool pump motors require GFCI protection. According to 680.22(B), all 15- or 20-ampere, 125-volt or 240-volt, single-phase outlets supplying pool pump motors are required to be provided with ground-fault circuit-interrupter protection for personnel.

How many amps does a 1hp pool pump draw?

Since it's an aboveground pool pump it's an uprated model and probably draws in the neighborhood of 10 to 12 amps at 120 volts. Depending on your plumbing it may draw less.

How many amps does a 1.5 HP pool pump draw?

I needed a new pool motor and installed was a 1.5 HP motor which has a 115/230 19.2/9.6 amp maximum load. The motor is on a 20 amp/115 volt breaker which has tripped a couple of times.

Are pool pump motors required to be on a GFCI breaker?

Pool pump motors require GFCI protection. According to 680.22(B), all 15- or 20-ampere, 125-volt or 240-volt, single-phase outlets supplying pool pump motors are required to be provided with ground-fault circuit-interrupter protection for personnel.

Why is my pool pump tripping the breaker?

It may be because of four reasons: Your circuit breaker is short circuiting from the water or corrosion collected by the pool pump. Debris from the rain goes into the housing, making the motor overwork. It can also be due to moisture from certain weather conditions as well.

How many amps does a 2 HP pool pump draw?

A 2 hp pump won't pull twice as many amps as our 1 hp example motor UST1102, but it will be more, about 25% more, up to 20/10 amps.

Can you run a pool pump with an extension cord?

Running your pump with an extension cord voids the warranty in most cases. Running the pool pump motor with an extension cord that is not adequately paired for the filter's power will damage the motor. At times, pool owners, however, use extension cords in lieu of a costly job to bury a power line beneath the ground.

What size wire do I need for 30 amps?

Any circuit fused for 30 amps must use a minimum of 10 ga copper or 8 ga alu. Longer runs may require an upgrade of wire size. In your case, use at least 10 copper for your welder regardless how far it is from the breaker panel.

Will 8 gauge wire carry 50 amps?

8 AWG may carry a maximum of 70 Amps in free air, or 50 Amps as part of a 3 conductor cable. David, if that cable is NM (Romex) then it actually cannot carry 50 amps.

What size wire do I need for 25 amps?

This application requires a 25 amp circuit breaker. Wire size is a very important part in sizing a circuit. For circuit breakers up to 15 amps, use 14 gauge wire or larger. For a 20 amp breaker, use 12 gauge wire or larger.

How many amps can 10 3 wire carry?

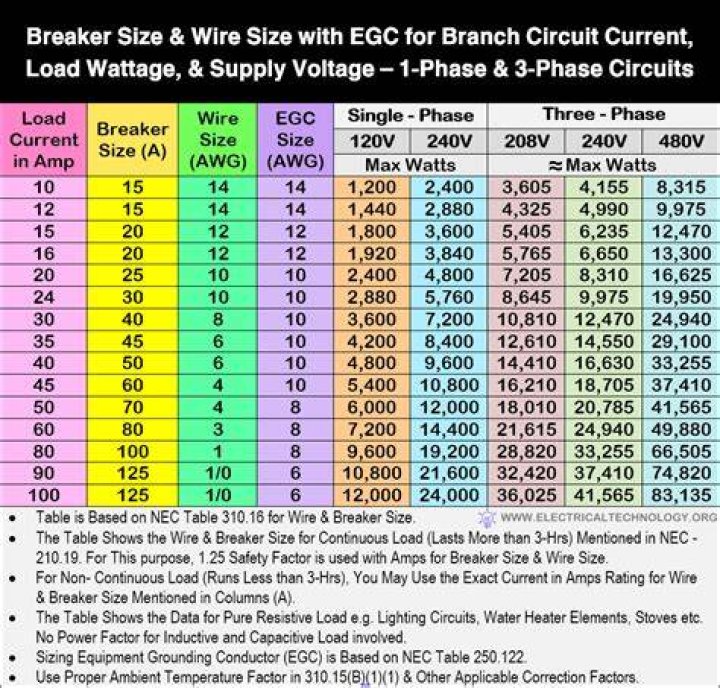

Size & AMP Ratings

NM, TW, & UF WIRE (Copper Conductor)	SE CABLE (Copper Conductor)
14 AWG - 15 AMPS	8 AWG - 50 AMPS
12 AWG - 20 AMPS	6 AWG - 65 AMPS
10 AWG - 30 AMPS	4 AWG - 85 AMPS
8 AWG - 40 AMPS	2 AWG - 115 AMPS

What size wire is rated for 60 amps?

A kiln has a full load amp rating of 48 amps. 48 x 1.25 = 60 amps. A 60 amp breaker is a standard size.

For these older kilns.

20 amps	12 gauge copper
60 amps	6 gauge copper
70 amps	4 gauge copper
80 amps	3 gauge copper
90 amps	2 gauge copper

How do you wire a sump pump?

Attach the pumps electrical cord to the discharge pipe using wire ties. Install a check valve on the open end of the discharge pipe. Place the pump into the sump and prepare to run the water out of the house. Make sure you use a check valve that is made for vertical operation.

What gauge wire do I need for 220 volts 15 amps?

Because the breaker for the circuit is rated for 15 amps, you may use 14-gauge wire. It is a good idea, however, to use 12-gauge wire, which is thicker and less prone to overheating.

What kind of wire do I need to run 220?

If you're wiring a 220v, 20-amp outlet to run power tools, you can use the same 12-gauge wire you would use for a 110-volt, 20-amp circuit. Remember that the cable must have an extra hot wire. If the appliance draws 30 amps, you need a different type of receptacle, and the cable needs to be 10-gauge.

What size wire do I need for a 220 air compressor?

Remove the cover from the fuse box and install a 30-amp 220-volt circuit breaker for the compressor. Run the 10-gauge 3-conductor wire into the box. Connect the red and black wires to the circuit breaker terminals, and the white and bare copper wires to the ground bus.

How do I stop my air compressor from tripping the breaker?

Turn off or unplug the compressor. Drain the compressor tank and then close the drain. With due regard to the presence of live terminals inside the pressure switch, pull the cover off, reset the breaker, and watch inside the pressure switch to see if there is any arcing or sparking when you turn the compressor back on.

How many amps does a 5 hp compressor draw?

5 HP is right about 3725 watts which is about 16.2 amps. The motor is probably closer to about 4.5 HP in reality. 15 amps at 230 volts is not 7.5 amps on each leg. That would assume 100% efficient motor.
