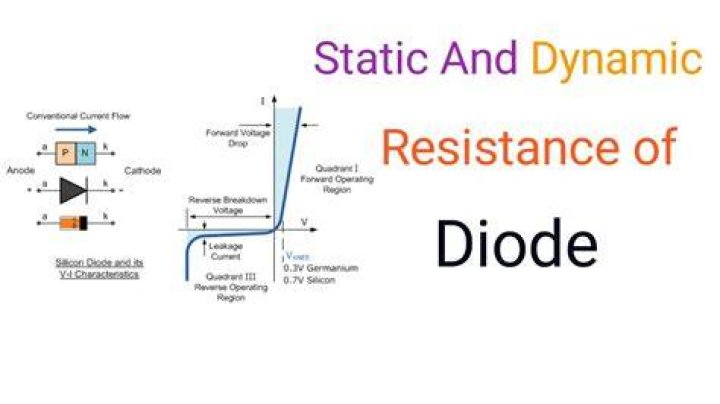

What is the static resistance of a diode?
Madison Flores news
The resistance offered by a p-n junction diode when it is connected to a DC circuit is called static resistance. Static resistance is also defined as the ratio of DC voltage applied across diode to the DC current or direct current flowing through the diode.
.
Also know, what is the resistance of a diode?
The forward-biased resistance of a good diode should range from 1000 Ω to 10 MΩ. The resistance measurement is high when the diode is forward-biased because current from the multimeter flows through the diode, causing the high-resistance measurement required for testing.
Secondly, do diodes have a resistance? Just like a resistor or any other load in a circuit, a diode offers resistance in a circuit. Unlike resistors, though, diodes are not linear devices. This means that the resistance of diodes does not vary directly and proportional to the amount of voltage and current applied to them. It changes parabolically.
Just so, what is dynamic resistance of Zener diode?
For a zener diode, it refers to the characteristic in reverse breakdown mode, which is its normal operating mode. For a small rectifier diode, (1N4005), between 0.8A & 1A, the dynamic resistance is around 0.25 ohms. It is higher at lower currents.
What is cut in voltage?
Cut-in voltage or knee voltage or threshold voltage is the minimum voltage( in forward bias condition)after which the diode current rises rapidly and diode is said to be conducting for silicon it's 0.7 volt and for germanium it's 0.3.
Related Question Answers
What is Cutin voltage?
Originally Answered: What is the cutin voltage of a diode? Cut-in voltage or knee voltage or threshold voltage is the minimum voltage( in forward bias condition)after which the diode current rises rapidly and diode is said to be conducting for silicon it's 0.7 volt and for germanium it's 0.3.What is Zener breakdown voltage?
A normal p-n junction diode allows electric current only in forward biased condition. This sudden rise in electric current causes a junction breakdown called zener or avalanche breakdown. The voltage at which zener breakdown occurs is called zener voltage and the sudden increase in current is called zener current.What is meant by resistance?
Resistance is the opposition that a substance offers to the flow of electric current.What is ideal diode?
An ideal diode is a diode that acts like a perfect conductor when voltage is applied forward biased and like a perfect insulator when voltage is applied reverse biased. So when positive voltage is applied across the anode to the cathode, the diode conducts forward current instantly.What is reverse breakdown voltage?
Glossary Term: Reverse-Breakdown-VoltagePeak Inverse Voltage (PIV) or Peak Reverse Voltage (PRV) refer to the maximum voltage a diode or other device can withstand in the reverse-biased direction before breakdown. Also may be called Reverse Breakdown Voltage.What is difference between AC and DC resistance?
Answer: The resistance offered by a conductor for both AC and DC is different, the resistance offered 2 DC by conductor is known as DC resistance while the resistance offered to AC is known as AC resistance or effective resistance. For a given conductor AC resistance is more than its DC resistance.Does the diode obey Ohm's law?
Diodes do not follow ohms law. As you can see in your quoted passage, Ohm's law specifically states that R remains constant. If you try to calculate R from V/I while looking at a diodes IV curve, you will see that as you increase the voltage, "R" will change.What does a diode symbol look like on a multimeter?
A diode is reverse-biased when the positive (red) test lead is on the cathode and the negative (black) test lead is on the anode. The reverse-biased resistance of a good diode displays OL on a multimeter.Does diode decrease current?
Ideally, diodes will block any and all current flowing the reverse direction, or just act like a short-circuit if current flow is forward. Unfortunately, actual diode behavior isn't quite ideal. Diodes do consume some amount of power when conducting forward current, and they won't block out all reverse current.Can you test diode in circuit?
The positive terminal of a diode is called the anode, and the negative terminal is called the cathode. You can damage a diode by exceeding its rated voltage or current values. Often, a failed diode will allow current to pass in either direction unimpeded. You can test a diode using a multimeter.How do you identify a diode specification?
How to identify a diode and its specification- The 1st letter of the symbol indicates the nature of semiconductor Material.
- The 2nd Letter of any symbol indicates the device type and its function in the circuit eg C means small signal and D means power.
- Commonly two Letters and three Numbers and three letters and two numbers are used.
