What is DPDT relay?
Madison Flores general
.
Also, how does a DPDT relay work?

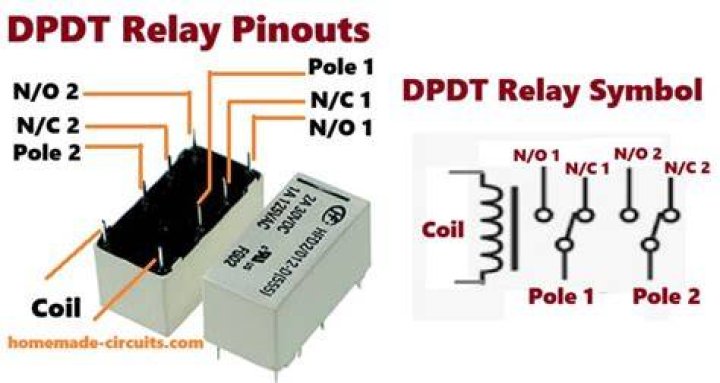

DPDT stands for double-pole double-throw relay which is an electromagnetic device used to separate two circuits electrically and connect them magnetically. They are often used to interface an electronic circuit, which works at a low voltage to an electrical circuit which works at a high voltage.
Secondly, what does Dpdt mean? double pole double throw
Similarly, you may ask, what is a DPDT switch used for?
DPDT is a double pole double throw switch; this is equivalent to two SPDT switches. It routes two separate circuits, connecting each of two inputs to one of two outputs. The position of the switch determines the number of ways in which each of the two contacts can be routed.
What is a SPDT relay?
The SPDT Relay(30A) is a high quality Single Pole Double Throw Relay(SPDT). The Relay consists of a coil, 1 common terminal, 1 normally closed terminal, and one normally open terminal. When the coil of the relay is at rest (not energized), the common terminal and the normally closed terminal have continuity.
Related Question Answers
How do you test a relay?
Listen for a click when the relay is energized. Check the energized condition of the relay contacts. Use a digital multimeter (DMM) to test the resistance between each pole of the relay and the corresponding NC and NO contacts for that pole. All NC contacts should read infinite resistance to the corresponding pole.How do relays work?
A relay is an electromagnetic switch operated by a relatively small electric current that can turn on or off a much larger electric current. The heart of a relay is an electromagnet (a coil of wire that becomes a temporary magnet when electricity flows through it).What causes a relay to go bad?
Even in low-level signal applications, accidents and faulty UUTs can cause relay failures, and inrush currents, caused by hot-switching capacitive loads, and voltage spikes, caused by hot-switching inductive loads, accelerate relay aging.What is DPST relay?
DPST – Double Pole Single Throw.These have two pairs of terminals. Equivalent to two SPST switches or relays actuated by a single coil. Including two for the coil, such a relay has six terminals in total. The poles may be Form A or Form B (or one of each).Why do I need a relay?
Relays are often used in circuits to reduce the current that flows through the primary control switch. A relatively low amperage switch, timer, or sensor can be used to turn a much higher capacity relay on and off. Another primary use for relays is when upgrading to halogen headlights on an older car.How relay works as a switch?
A relay is an electromagnetic switch operated by a relatively small electric current that can turn on or off a much larger electric current. The heart of a relay is an electromagnet (a coil of wire that becomes a temporary magnet when electricity flows through it).What is normally open switch?
Normally Open/ClosedWhen a momentary switch is not actuated, it's in a “normal” state. Depending on how the button is constructed, its normal state can be either an open circuit or a short circuit. When a button is open until actuated, it's said to be normally open (abbreviated NO).How does a double pole switch work?
Poles: A switch pole refers to the number of separate circuits that the switch controls. A single-pole switch controls just one circuit. A double-pole switch controls two separate circuits. A double-pole switch is like two separate single-pole switches that are mechanically operated by the same lever, knob, or button.What is the difference between SPST and SPDT relay?
SPST simply mean single pole, single throw. The product controls one circuit with one On position. SPDT means that it is a single pole double throw which means it has two ON positions. DPST again means it controls two separate circuits but it only has one On position.What is a reed switch and how does it work?
A reed switch is an electromagnetic switch used to control the flow of electricity in a circuit. They are made from two or more ferrous reeds encased within a small glass tube-like envelope, which become magnetised and move together or separate when a magnetic field is moved towards the switch.Can you use a DPDT as a Spst?
To use a SPDT switch as a SPST switch just use the common terminal and either of the other terminals. So you could use C and A or you could use C and B. A DPDT switch works just like two separate SPDT switches attached to the same switch bat.What is the difference between SPST and DPDT switch?
3.An SPDT switch has two positions (ON-ON), while DPDT can have the two (ON-ON) to three (ON-OFF-ON) positions. 4. SPDT has three terminals, while DPDT has six. 5.An SPDT switch has only one circuit mechanism, while a DPDT has two.How does a simple switch work?
An electric switch is a device that interrupts the electron flow in a circuit. Switches are primarily binary devices: either fully on or off and light switches have a simple design. When the switch is turned off, the circuit breaks and the power flow is interrupted. Circuits consist of a source of power and load.What is momentary switch?
Momentary Switch. By Sweetwater on Oct 22, 2002, 12:00 AM. A type of switch usually in the form of a push button that is only engaged while it is being depressed, as opposed to a typical “on/off” switch, which latches in its set position. Momentary switches may be normally open or normally closed.What's the difference between SPDT and DPDT?
“SPDT” stands for “single pole double throw,” while “DPDT” stands for “double pole double throw.” Both terms are varieties of switches. A switch, in a mechanical and electrical setting, is a control device that is used to establish or interrupt the flow of power or electricity into a circuit.What is the use of Dpdt and TPDT switches?
You could use a TPDT (a.k.a. 3PDT or 3P2T) switch to toggle between one set of those components and another. You can also loop current back through the switch (from one pole to another) to reverse polarity using 2 of the three poles, while toggling something else on the third pole for example.What is double throw switch?
A Single Pole Double Throw (SPDT) switch is a switch that only has a single input and can connect to and switch between 2 outputs. This means it has one input terminal and two output terminals. It can serve as an on-off switch, depending on how the circuit is wired.What is SPST NO?
SPST-NO. Form A. Single pole, single throw, normally open. A simple on-off switch. The two terminals are normally disconnected (open) and are closed when the switch is activated.How do you test a momentary switch?
How to Test a Switch With an Ohm Meter- Verify ohm meter operation. Turn on the multimeter.
- Insert the leads into the meter Touch the probe tips together to verify that ohm meter is functioning.
- Connect the red lead to one of the terminals on the switch.
- Put the switch into the 'OFF' position.
- Operate the switch on and off for a few more times.
