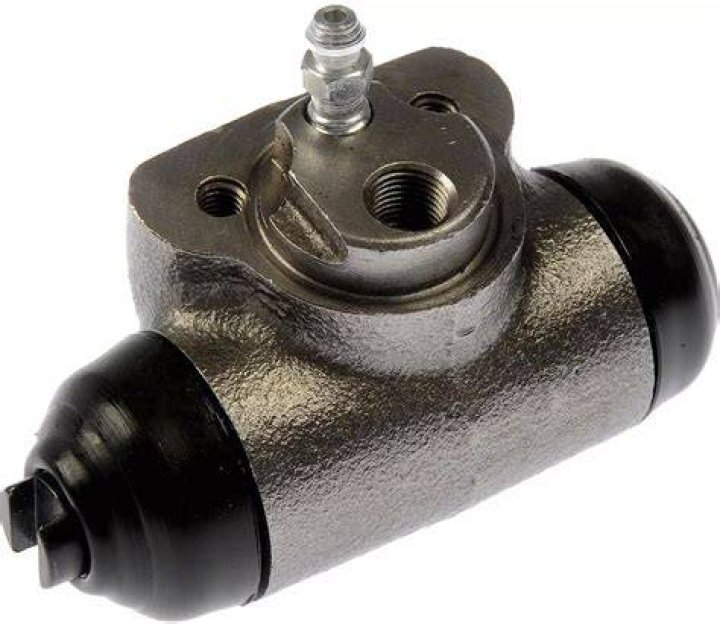

What is a rear brake cylinder?
Sarah Oconnor news
A wheel cylinder is a component of a hydraulic drum brake system. It is located in each wheel and is usually positioned at the top of the wheel, above the shoes. Its function is to exert force onto the shoes so as to bring them into contact with the drum and stop the vehicle with friction.
.
Furthermore, how does a rear brake cylinder work?
When you press the brake pedal, the brake fluid is pushed through the lines and into the wheel cylinder. The fluid pushes out on the two plungers, which push out on the upper half of the brake shoes. The shoes push out on the spinning drum to slow the vehicle.
Additionally, how do I know if my rear wheel cylinder is bad? When brake wheel cylinders do go bad, they will usually produce a few symptoms that can alert the driver that they may need to be replaced:
- “Mushy” feel to the brake pedal. One of the first and most distinct symptoms of a bad wheel cylinder is a “mushy” brake pedal.
- Delayed or slow brake response.
- Leaking brake fluid.
Secondly, how much does it cost to replace rear brake cylinder?
The average cost for a brake wheel cylinder replacement is between $247 and $358. Labor costs are estimated between $161 and $205 while parts are priced between $86 and $153. Estimate does not include taxes and fees.
How do you bleed rear drum brakes?
Bleeding your drum brakes is the same process as with disc brakes. Start with the wheel that's furthest away from the car's master cylinder and work towards it. You'll find the bleeder screw on the rear of the backing plate, usually near the top. Then, remove the rubber or plastic cover that's protecting the screw.
Related Question Answers
What is the difference between a brake pad and a brake shoe?
Brake pads are placed inside a caliper which surrounds the brake disc and brake shoes are placed inside the brake drum. Brake shoes typically last much longer than brake pads. Usually they are positioned on the rear axle and undertake a much lower proportion of the braking work.Do disc brakes have wheel cylinders?
Types of SystemsFront disc brake/ rear drums or four wheel disc brakes. Drum brakes use wheel cylinders, instead of calipers. The wheel cylinder also use hydraulically applied pistons that push a pair of brake shoes against the inside of a drum in order to create the friction needed to stop.Where is the wheel cylinder located?
A wheel cylinder is a component of a hydraulic drum brake system. It is located in each wheel and is usually positioned at the top of the wheel, above the shoes. Its function is to exert force onto the shoes so as to bring them into contact with the drum and stop the vehicle with friction.What is a brake drum?
A drum brake is a brake that uses friction caused by a set of shoes or pads that press outward against a rotating cylinder-shaped part called a brake drum. The term drum brake usually means a brake in which shoes press on the inner surface of the drum.What is a wheel cylinder kit?
The wheel cylinder is the hydraulic part of your drum brake system that presses the brake shoes into the drum. Most wheel cylinders are simple devices and fail because of an aging or torn rubber seal. A wheel cylinder kit allows you to rebuild your own wheel cylinders using replacement seals and springs.How long does it take to change a cylinder?
To replace both cylinders takes roughly 8 hours. You can get an exact quote, both as to labor and parts, by using YourMechanic's on-line estimator for clutch repairs.What causes wheel cylinders to go bad?
A few things can cause the seals to leak. With wheel cylinders, what is a common failure is when new shoes are installed on the old wheel cylinders. This pushes the cups back into an area that has not been traveled on in a while. The rough surface will tear up the seals.How much does it cost to fix a brake cylinder?
If you have a brake master cylinder that goes bad, the average cost to replace the cylinder will be between $320 and $500. The cost of the part itself will only be around $100 to $210. But the biggest expense of the replacement job will be in the labor costs, which are around $230 to $300.Can I drive my car if it is leaking brake fluid?
No. Do not drive your car if fluid is leaking. Depending on the type of fluid that is leaking, you may be able to drive home from your location, or it may not be safe to drive at all (as is often the case with a brake fluid leak).How much is a wheel cylinder replacement?
The average price to replace one brake wheel cylinder ranges from $200 to $350, although some may be more. The cost of brake wheel cylinder replacement is usually less, however, because it's commonly done at the same time as brake shoe replacement.Why are my back brakes leaking?
There are several conditions under which your car would leak brake fluid. One of the rubber hoses, brake calipers, wheel cylinders, or master cylinders could be leaking. Worn brake pads or shoes causing caliper seal failure. Loose bleeder valves.What does a brake cylinder do?
The brake master cylinder is one of the most important components found in modern car braking systems. It serves as the main valve that pushes brake fluid through the brake lines so the brake calipers can squeeze the pads against the rotors.Should wheel cylinders be replaced in pairs?
It's recommended you replace the brake wheel cylinder in pairs, especially when replacing other rear brake components. However, you should complete this job one wheel at a time.Can a master cylinder be repaired?
The most common necessary brake master cylinder repair is fixing a leak in the seals. This is typically a brake master cylinder repair that will become necessary after a few years when the seals wear out. It's not a difficult repair, although the details might vary depending on the make and model of your vehicle.Why do brake cylinders leak?
Causes of Brake fluid LeaksIf pads or shoes and their respective counterpart rotors and drums become worn, the pistons that operate the pads or shoes can become hyperextended, breaking the cylinder seals and weeping fluid to the affected area.How do you clean a brake cylinder?
To clean the piston, use brake fluid, with a scrub pad to take off hard dirt and grease. If you see that the piston is pitted in any way, you'll need to replace it. To clean the caliper, use a scrub brush and brake fluid, which is the best at removing grease and dirt.How do you fix a brake leak?
Replace the caliper.- Replace the outer dust seal.
- Replace the pads, shims, springs, and sliders or pins. Use the new parts that came in your repair kit, and discard your old parts.
- Reconnect the steel and rubber brake lines.
- Replace the brake bleeder bolt.
- Test the brakes to make sure they are no longer leaking.
How do you rebuild a brake caliper?
- Step 1: Jack Up the Car, Support on Axle Stands and Remove the Wheel.
- Step 2: Remove the Caliper.
- Step 3: Pump Out the Piston Using Brake Pressure.
- Step 4: Remove the Old Seals and Clean Up the Caliper.
- Step 5: Fit the New Piston & Seals.
- Step 6: Replace Any Extra Parts, Refit the Caliper & Bleed the Brakes.
