What Is A Blind Rivet? Blind rivets, also commonly referred to as POP Rivets, are mainly used in applications where there is no access to the rear (blind side) of the joint. Rivets have a two-piece construction; one is called the rivet body, shell, or hat and another is called the stem or mandrel..
Keeping this in consideration, when would you use a blind rivet?
Like many other fasteners blind rivets are not meant to pull materials together. Rather they should be used to fasten materials that are already temporarily clamped or otherwise held together.
Likewise, what are pop rivets used for? A POP Rivet is a blind fastener which can be inserted and set from one side of the work piece. Depending on the application, they can be used as replacements for welds, adhesives, screws, nuts and bolts. A typical POP Rivet is made up of two key parts; the rivet body and the setting mandrel.
Regarding this, how does a blind rivet work?

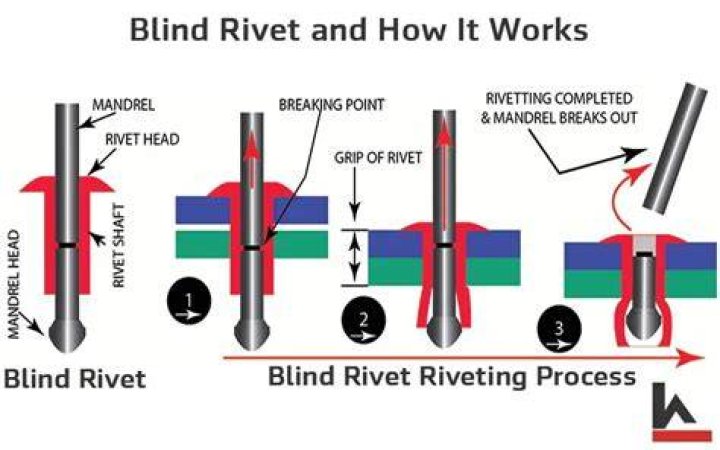

How blind rivets work. Blind rivets are installed in a tight hole that passes through the materials being riveted (Step 1 & 2). A riveter is used to pull the mandrel back while holding the rivet in place (Step 3). This expanded size forms the back side of the rivet holding the materials together.
What does a blind rivet look like?
As the mandrel is pulled back, it deforms the rivet by pushing the sides outward until the mandrel snaps. Blind rivets are usually categorized by the material of the rivet and then the material of the mandrel. For example, you might see “aluminum/steel”, which means an aluminum rivet with a steel mandrel.
Related Question Answers
What is the difference between pop rivet and blind rivet?
Pop rivets are used in a blind setting like blind rivets, but the material application is a little different. Pop rivets can be used with plastic, metal and wood while offering a longer-lasting setting than traditional blind rivets developed outside of the lab of the George Tucker Eyelet Company.What is the strongest rivet?
Also, aluminum rivets with aluminum mandrels are the least strong; aluminum rivets with steel mandrels are stronger; steel rivets with steel mandrels are stronger still; and stainless steel rivets with either steel or stainless steel mandrels are the strongest.Are pop rivets waterproof?
The CUP sealed blind rivets are made of 316 stainless steel for the body and the mandrel from 318L Duplex and tested to demonstrate 100% waterproof. The video clearly shows the water seeping through the traditional blind or pop rivet, yet our closed cup rivet remains 100% waterproof with up to 1 metre of water.What are the different types of rivets?
There are four basic types of rivets; tubular, blind, solid and split. There are two basic types of threaded inserts; press-in and blind.How do you make a solid rivet?
They will need to place the air hammer bit on the end of the solid rivet to easily hammer it flat onto the metal surface. When this happens, the rivet will have a strong hold. In mean time, you will need to use a bucking bar, or some type of flat metal bar, to hold the rivet head in place.What type of rivet is used where access is from one side only?
A blind rivet, sometimes called a pop rivet, is tubular with a mandrel through the centre. Blind rivets are mainly used when the joint is accessible from one side only.Are rivets stronger than screws?
Screws (wood and sheet metal) are stronger than rivets of the same diameter because they have more cross section, but they have little backing area. Machine screws with washers and nuts are not only extremely strong, they also have a large backing area. Rivets can also be used with washers.Are rivets stronger than bolts?
Rivets stand up to vibration better than normal screws. What differentiates a riveted joint from a bolted joint is that the rivet expands when bucked to completely fill the hole into which it has been installed. Bolts are much heavier than rivets, and there can be thousands of them even on a small airplane.When did they stop using rivets?
Rivets were replaced with high-strength bolts starting in 1960.How do plastic rivets work?
Plastic drive rivet fasteners operate by pushing the stem of the fastener through a hole in a panel or other surface. The rivet is then secured by pushing or screwing the pin through the centre of the rivet causing the sides to expand. They generally offer a more secure fixing than a fir tree or w-button fastener.How much weight can a pop rivet hold?
Google says between 500-700 lbs shear strength.Can you tighten a rivet?
How to Tighten a Rivet. Rivets are used to permanently fasten two or more objects together. Once the rivet is inserted through a hole in each object, the cylindrical end is hammered forcefully until it forms a second head and is secured in place. If a rivet becomes loose, hammer it down again with the help of a partnerCan you pop rivet plastic?
Pop riveting is a technique that is used to join thin pieces of metal and it can also be used to join plastic sheet. The rivet has two parts; the pin and the rivet. It is ideal for joining aluminium or even thin sheet plastic.Can I use aluminum rivets on steel?
Stainless steel fasteners in aluminium plates or sheets are normally considered safe, whereas aluminium rivets or bolts holding stainless steel parts together is an unwise combination, as there is a practical risk of corrosion. Even with no insulation between the metals, there should be little risk of corrosion.Can you pop rivet wood?
Since they are softer materials than metal (which is what pop rivets are traditionally used on) the process is slightly different. Start by drilling a hole the same diameter as your rivet. It will say on the box what the diameter is. Now, for wood or leather, you need to make sure to use rivet washers.Can you rivet into concrete?
The short answer is Yes! You can install a Lag Screw into concrete. Installing a lag screw into concrete is not a difficult process but it does require an anchor to install properly. Lag shields are concrete anchors that expand near the bottom to hold the shield inside of a drilled hole.What do you mean by rivets?
noun. a metal pin for passing through holes in two or more plates or pieces to hold them together, usually made with a head at one end, the other end being hammered into a head after insertion.Why rivets are used in aircraft?
One reason that airplanes are manufactured with riveted joints instead of welded joints is because the aluminum materials used in their construction isn't tolerant of heat. Most commercial aircraft are designed with an aluminum body. Not only is aluminum is inexpensive and readily available; it's also lightweight.How do you get rivets out?
If you want to remove a rivet using a chisel and drill, insert the chisel under the rivet's head and tap it with a hammer to cut off the head. Alternatively, remove the head with a grinder. Next, use a small punch and hammer to drive the pin part of the way through the hole to make a starter hole for the drill bit.
