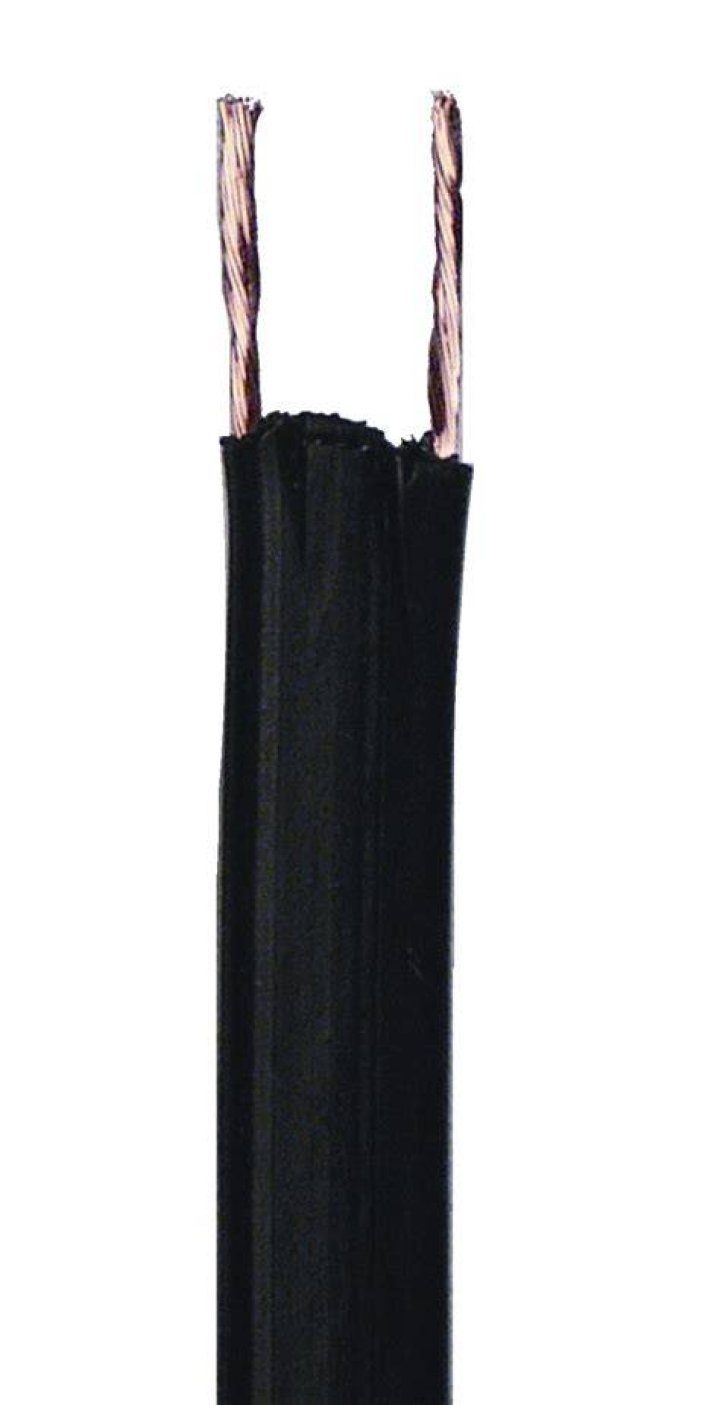

What is 300 ohm wire?

Most TV antennas are designed to feed out at 300 ohms and come with a BALUN (BALanced to UNbalanced) matching transformer to 75 ohm coaxial cable. The source impedance and the terminating impedance have to match otherwise standing waves occur (VSWR) resulting in reflections of the signal.

Accordingly, what is 300 ohm FM antenna?

The 300 Ohm is for twin lead, think rabbit ear ribbon wire. The 75 Ohm is typically coax for cable TV, satellite, ect. It has less to do with which is better and more to do with the antenna. The two Ohm connections only refer to the cabling used to attach the antenna to the receiver.

Beside above, what is 75 ohm antenna? There isn't really such a thing as a “75 ohm antenna.” What happens is actually a bit sneakier. Modern antennas use a device called a balun that serves two purposes. The result is that the 300 ohm impedance is reduced to 75 or 50 ohms which is a much more compatible result for copper coaxial cable.

Just so, what is 75 ohm coaxial cable?

The primary use of a 75 Ohm cable is to transmit a video signal. One of the typical. applications is television signals over cable, sometimes called signal feed cables. The most common connector used in this application is a Type F.

What is a ladder line?

Ladder line or "window line" is a variation of twin lead which is constructed similarly, except that the polyethylene webbing between the wires which holds them apart has rectangular openings ("windows") cut in it. The most common type is 450 ohm ladder line, which has a conductor spacing of about an inch.

Can speaker wire be used as an antenna?

Definately yes. In theory, every metal can be used as antenna with varying results. In order to achieve maximum signal strenght in FM band, opt for a lenght of 28 inches ~(72 cm) of speaker cable (both strings), split it to create a dipole antenna and connect the wires to the “balanced” input of the tuner.

How do you make a coax antenna?

Method 1Using a Coaxial Cable

Gather the necessary materials.
Calculate the length of your antenna.
Cut off one end of the coaxial cable.
Strip half of the antenna's overall length from the end of the coaxial cable.
Cut the copper tubing to half of the antenna's overall length.
Attach the tube to the coaxial cable.

How can I make an FM antenna booster?

How to Make a Simple Antenna to Improve the Reception of an FM Radio Receiver

Measure 28-3/4 inches from one end of your wire. Wrap several turns of electrical tape at that point.
Split the wire from the end to the tape.
Attach each exposed end to one of two screw terminals on your receiver marked for the FM antenna.

What are the different types of antenna?

Let us now briefly see about few of these different types of antennas.

Wire Antennas. One of the most commonly used antennas are wire antennas.
Short Dipole Antenna. Perhaps the simplest of all antennas is the Short Dipole Antenna.
Dipole Antenna.
Loop Antenna.
Monopole Antenna.
Aperture Antennas.
Slot Antenna.
Horn Antenna.

What is 75 ohm cable used for?

75 Ohm is primary used for video and audio, hence why its rapid adoption and use as standard in the country. For home applications, they do a perfectly fine job of transmitting signal up to 50 feet of cable with home or small building installation topping out at 5,000 sq ft.

What are the characteristics of coaxial cable?

The source and load impedances are chosen to match the impedance of the cable to ensure maximum power transfer and minimum standing wave ratio. Other important properties of coaxial cable include attenuation as a function of frequency, voltage handling capability, and shield quality.

Does length of coaxial cable affect signal?

Cable Length and Signal LossLet's get the basic answer out of the way up front: Yes, cable length can and will have a negative impact on TV signal, because it's an imperfect transmission medium, and signal degradation is a known issue.

What is the resistance of coaxial cable?

Most RF Coaxial Cables have an impedance of 50 ohms or 75 ohms. These are considered to be standardized impedance values with cables readily available. In some cases, users require a custom impedance value. This can be achieved by regulating the inner and outer diameter of the coaxial cable, along with the dielectric.

How do you identify coaxial cable connectors?

Standard Polarity Coaxial Connectors.Typically, standard RF plugs are male, and the threads are on the inside of the shell. Typically, standard RF jacks are female, and the threads are on the outside of the shell. The shell of a plug (male) typically covers the shell of a jack (female).

What is a 50 ohm cable?

So 50 ohm cables are intended to be used to carry power and voltage, like the output of a transmitter. If you have a small signal, like video, or receive antenna signals, the graph above shows that the lowest loss or attenuation is 75 ohms. You have to buy a matching network to use it at 75 ohms or any other impedance.

How many watts can rg58 handle?

RG stands for "Radio Guide" and is a military term. The 58 class has an outer diameter of 0.195 inches, 50 to 53.5 ohms impedance, and can handle up to 500 watts of HF (High Frequency) power. RG58/U has a solid center conductor of 20 AWG bare copper. Its capacitance is 28.5 pF per foot.

What is 50 ohm coax used for?

The primary use of a 50 Ohm coaxial cable is transmission of a data signal in a two-way communication system. Some common applications for 50 Ohm coaxial cable are computer Ethernet backbones, wireless antenna feed cables, GPS (Global Positioning Satellite) antenna feed cables and cell phone systems.

Is all rg6 cable 75 ohm?

An RG-6/U coaxial cable has a characteristic impedance of 75 ohms. The term, RG-6, is generic and is applied to a wide variety of cable designs, which differ from one another in shielding characteristics, center conductor composition, dielectric type and jacket type.

Can I use 75 ohm cable instead 50?

You can use these cables with a 50 Ohm amateur radio antenna system, but because of the impedance mismatch, your SWR will be a little higher. For example, if everything else is balanced out, using the 75 ohm cable with a 50 Ohm antenna will increase your SWR to 1.5:1 at the transmitter.

What is the difference between rg58 and rg59 cable?

Q: What is the difference between RG-58 and RG-59 coaxial cable? A: RG-58 is 50-ohm coaxial cable and is typically used for radio communications and thin Ethernet networks. RG-59 is 75-ohm coaxial cable for CCTV and cable TV. Some also use RG-6 for video connections.

Can you use coax cable for antenna?

Choosing and Installing Antenna Downlead CablingThere are three types of cable in general use for FM antennas. One is the flat 300-ohm twin- lead cable that has been in use for decades. The second and more popular type is RG59/U 75- ohm coaxial cable.

How long is an FM antenna?

For example, the common quarter-wave whip antennas used on FM radios in the USA are approximately 75 cm long, which is roughly one-quarter the length of radio waves in the FM radio band, which are 2.78 to 3.41 meters long. Half-wave antennas are also common.

What is the best radio antenna?

Top 10 Best FM Antennas Reviews

Terk FM Omnidirectional Indoor Antenna.
Ancable 75-ohm FM Antenna.
Steller Labs Outdoor FM Antenna.
MAR16W Dual electronics Mast range Marine Antenna.
ST-2 Magnum Dynalab omnidirectional FM Antenna.
Antop Amplified Antenna for Home Stereo Receiver.
Herdio Waterproof Marine Radio Antenna.

What is the best antenna for FM radio?

Top 30 Best AM/FM Antennas 2020

Ancable Indoor FM Antenna 75 Ohm.
ANTOP Amplified Indoor AM/FM Antenna.
Fancasee 75 Ohm FM Antenna.
ANTOP Amplified Indoor AM/FM Antenna.
E-outstanding 75-Ohm UNBAL FM Radio Antenna.
BOSE Wave FM Antenna.
TERK Amplified AM/FM Stereo Indoor Antenna.
TERK Omni-Directional Indoor FM Antenna.
