Document the length of catheter inserted, measured from the point where the catheter first becomes visible at the sleeve. Thin lines represent 10 cm lengths; thick line is 50 cm marker. Balloon port should be left in the UNLOCKED position with syringe empty and attached to port..
Also know, where does a PA catheter sit?

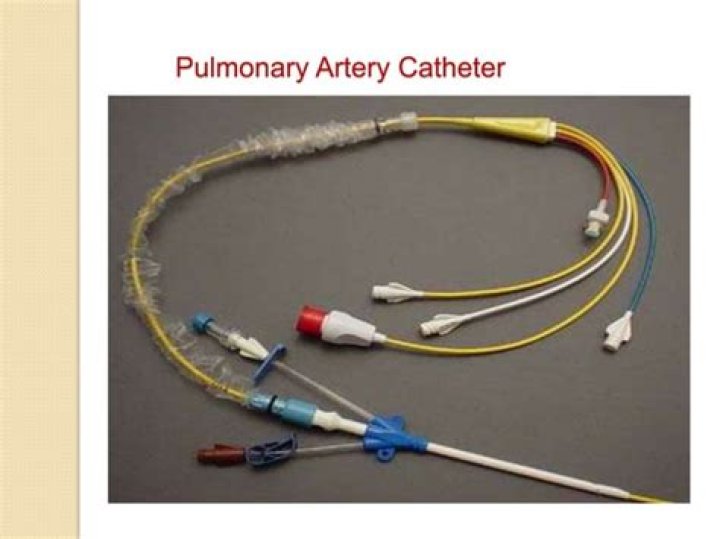

The procedure involves the insertion of a pulmonary artery catheter (PAC) into the right side of the heart and into the arteries that lead to the lungs. The PAC has a balloon tip. The balloon allows the catheter to be carried by the flow of your blood to the place in your heart where it'll be used.
Also Know, what are normal PA pressures? Pulmonary blood pressure is normally a lot lower than systemic blood pressure. Normal pulmonary artery pressure is 8-20 mm Hg at rest. If the pressure in the pulmonary artery is greater than 25 mm Hg at rest or 30 mmHg during physical activity, it is abnormally high and is called pulmonary hypertension.
Beside this, how long is a Swan Ganz catheter?
Model numbers
| Model | Description | Length (cm) |
| 139F75 | Continuous Cardiac Output (CCO) VIP Pulmonary Artery Catheter | 110 |
What is a PA line?
A PA-line is a long multilumen catheter (a catheter with several tubes. in it, instead of just one), that is inserted through one of the large veins, and threaded through the right side of the heart, up into the pulmonary artery. 2- What are PA lines used for?
Related Question Answers
What are common complications of pulmonary artery pressure monitoring?
Com- mon complications associated with PAC insertion include arrhythmias, pulmonary infarction, catheter knotting, catheter entanglement with other endovas- cular structures (i.e., vena cava filter), and PA rupture (6–9).What does CVP mean?
central venous pressure
Can an echocardiogram detect pulmonary hypertension?
While the echocardiogram is a useful tool, it cannot be used to officially diagnose PAH and treatment should not be initiated based on estimated pulmonary artery pressures from the echo. A right heart catheterization is currently the only way to officially diagnose pulmonary arterial hypertension.What is the difference between a PICC line and a central line?
A PICC line is a longer catheter that's also placed in the upper arm. Its tip ends in the largest vein of the body, which is why it's considered a central line. PICC stands for "peripherally inserted central-line catheter.” A CVC is identical to a PICC line, except it's placed in the chest or neck.What does increased PAWP mean?
Pulmonary Capillary Wedge Pressure (PCWP or PAWP): PCWP pressures are used to approximate LVEDP (left ventricular end diastolic pressure). High PCWP may indicate left ventricle failure, mitral valve pathology, cardiac insufficiency, cardiac compression post hemorrhage.Why is a Swan Ganz catheter used?
Swan-Ganz catheterization is the passing of a thin tube (catheter) into the right side of the heart and the arteries leading to the lungs. It is done to monitor the heart's function and blood flow and pressures in and around the heart. This test is most often done in people who are very ill.How do you zero a PA catheter?
Connect one of the pressure cables to the “PA” transducer. Turn the stopcock on the (PAP) pulmonary artery pressure transducer off to the patient (open to air). Transducer holder with transducers should be placed level with the patient's 4th intercostal space in the midaxillary line. Select the “0- Zero” soft key.What is the Phlebostatic axis?
phlebostatic axis a point located by drawing an imaginary line from the fourth intercostal space at the sternum and finding its intersection with an imaginary line drawn down the center of the chest below the axillae. Phlebostatic axis.What is a normal cardiac index?
Cardiac Index (CI)The cardiac index is an assessment of the cardiac output value based on the patient's size. To find the cardiac index, divide the cardiac output by the person's body surface area (BSA). The normal range for CI is 2.5 to 4 L/min/m2.What is normal pulmonary artery wedge pressure?
The normal mean pulmonary capillary wedge pressure (PCWP) is 2–14 mmHg (Fig.Which port is used for CVP monitoring?
[1] recommend that central venous pressure (CVP) should be monitored via the proximal lumen of a central venous catheter to help detect catheter migration. We fully support this, but do not agree with their statement that 'traditionally, the proximal port of the central venous catheter is used for CVP monitoring.What does PA pressure measure?
PA pressure monitoring can detect changes in your heart before you notice symptoms. A PA pressure monitoring system uses a sensor to measure your pulmonary artery pressure and heart rate. The sensor is no larger than the size of a dime, with two thin loops at each end.What is CVP monitoring?
Central venous pressure (CVP) is the blood pressure in the venae cavae, near the right atrium of the heart. CVP reflects the amount of blood returning to the heart and the ability of the heart to pump the blood back into the arterial system. Nevertheless, CVP monitoring is a useful tool to guide hemodynamic therapy.How is SvO2 measured?
The SvO2 level can be measured from the distal tip of the PA Catheter (e.g. Edwards CCOmbo Swan-Ganz Catheter), either continuously or intermittently. It is also possible to measure ScVO2 from the distal tip of the triple lumen catheter (e.g. Edwards PreSep Central Venous Catheter with Oximetry).What does a swan measure?
The Swan-Ganz procedure can measure the pressure of the blood flow through the right side of the heart (right atrium and right ventricle) as well as pressures in the pulmonary artery and the filling pressure or wedge pressure of the left atrium.How do you measure the length of a swan?
Document the length of catheter inserted, measured from the point where the catheter first becomes visible at the sleeve. Thin lines represent 10 cm lengths; thick line is 50 cm marker.How do you monitor cardiac output?
Doppler cardiac output monitoring devicesCardiac output can be estimated non-invasively using esophageal or transthoracic Doppler probes. Esophageal Doppler devices measure blood flow in the descending aorta and estimate cardiac output by multiplying the cross sectional area of the aorta by blood flow velocity.What does a right heart cath show?
A right heart catheterization is a test used to see how well your heart is pumping (how much it pumps per minute) and to measure the blood pressure in your heart and the main blood vessels in your lungs. The test is also called pulmonary artery catheterization.What is a Foley catheter used for?
What Is a Foley Catheter? A Foley catheter is used to treat urine problems. A Foley catheter is a thin, sterile tube inserted into the bladder to drain urine. Because it can be left in place in the bladder for a period of time, it is also called an indwelling catheter. ![\"free](\"//sstatic1.histats.com/0.gif?5052552&101\")
