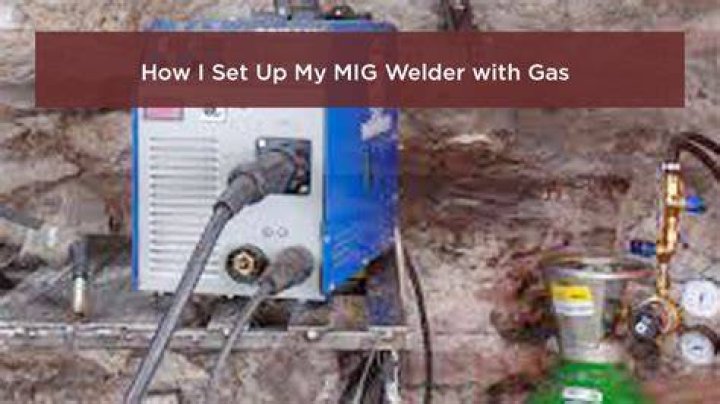

In this way, how do you put gas in a MIG welder?
MIG welding requires DC electrode positive, or reverse polarity. The polarity connections are usually found on the inside of the machine. Set gas flow. Turn on the shielding gas and set the flow rate to 20 to 25 cubic feet per hour.
Secondly, what is the correct gas pressure for MIG welding? MIG shielding gas flow is set and measured as cubic feet of gas per hour (CFH) NOT pressure in psi. Unlike oxyfuel welding and cutting, MIG gas flow rates are very low. The gas pressure in the hose going into a wire feeder/welder, while welding, typically varies from 3 to 8 psi.
Considering this, what is the best gas to use for MIG welding?
Argon
How much gas does a MIG welder use?
For most average size welds you'll want 25 to 30 cubic foot pounds per hour (CFH) but the thicker your metal is that you're welding the more gas (CFH) you will need to complete the weld and give it an aesthetically pleasing look.
Related Question Answers
Where should I set my MIG welding regulator?
Turn the handle located below the left regulator gauge, while depressing the MIG gun trigger until the pressure reads between 25 and 30 cubic foot-hours.What does the gas do in MIG welding?
The primary purpose of shielding gas is to prevent exposure of the molten weld pool to oxygen, nitrogen and hydrogen contained in the air atmosphere. The reaction of these elements with the weld pool can create a variety of problems, including porosity (holes within the weld bead) and excessive spatter.How does wire speed affect MIG welding?
The wire feed speed regulates how much or how fast the wire is feed into the weld joint. Wire feed speed is regulated in IPM or Inches Per Minute. With MIG it is the voltage setting that stays the same but the amperage is changing depending on the wire feed speed and electrode stick-out.What is argon used for?
It is used to fill incandescent and fluorescent light bulbs to prevent oxygen from corroding the hot filament. Argon is also used to form inert atmospheres for arc welding, growing semiconductor crystals and processes that require shielding from other atmospheric gases.Why argon gas is used in welding?
At these temperatures, most metals become liquid, which allows the formation of the weld. Argon is used to protect the molten pool of metal against elements in the Atmosphere including Oxygen, Nitrogen, and Hydrogen. These elements cause reactions with the liquid weld pool, such as porosity and increased weld spatter.How do we get argon gas?
Argon is produced industrially by the fractional distillation of liquid air in a cryogenic air separation unit; a process that separates liquid nitrogen, which boils at 77.3 K, from argon, which boils at 87.3 K, and liquid oxygen, which boils at 90.2 K. About 700,000 tonnes of argon are produced worldwide every year.Can I MIG weld without gas?
A no gas MIG welder doesn't use gas, but rather a hollow wire that's filled with flux. Just like flux is used to protect the weld puddle when using flux core wire, a shielding gas is used with the MIG process to protect the weld puddle.How much is a bottle of MIG gas?
Cost about $200. Refills are about $30. I think I saw a #1 at Northern Tool for $125, but that is a pretty small bottle.Can you TIG weld with MIG gas?
TIG welding mainly requires inert gas for a clean finish and no oxidation, while if an inert gas is used solely for MIG welding, it could compromise the look of the finished weld. MIG welding can tolerate semi-inert gas, as it helps with the welding process.What kind of gas do you use to weld stainless steel?
Welding of stainless steel is typically done with mixture of Argon and Carbon Dioxide gasses that can be as low as 2% carbon Dioxide to as high as 25% carbon Dioxide. In some cases there is tri-mix shielding gas containing 90% Helium, 7.5% Argon, and 2.5%Carbon dioxide.Can you weld steel with 100 Argon?
Yes, 100% Argon can be used to MIG weld steel, but you're likely to get an unattractive weld bead that is tall and narrow, often with a weld-weakening undercut. Mild steel MIG welds using 100% Argon shielding gas are also known for losing ductility. So on top of being weak, the welds can be brittle.How much does argon cost?
Re: argon costs$25 is about what the going rate SHOULD be.Is Argon an explosive?
The health hazards associated with overexposure to argon are minimal. But it is a simple asphyxiant, so in ceratin cases a release of a large volume of argon can pose a hazard of asphyxiation. Argon is neither flammable nor reactive. Argon is a colorless, odorless gas.Can you mig weld stainless steel with 100 Argon?
No. 100% Argon cannot be used to MIG weld stainless steel. Using pure Argon as a shielding gas results in an unproductive electrical arc and an atmosphere that doesn't support the arc to melt the stainless steel base metal well or produce a good molten puddle of metal and a strong weld.Can anyone buy argon gas?
The problem is that you can buy an argon tank, but if the only place you can go to get gas requires a rental contract, they won't even accept your cylinder. As a result, you may have no choice but to do the annual lease.
